Model inputs, process fusion, and outputs

Each card separates the geometry representation from the XLS process branch and shows where they meet. Execution results prove tensor compatibility and gradients. A separate weak-training diagnostic maps every feasible model back onto common CAD nodes.

Prepared representations6 families

Forward/backward checks19 passed

Independent physical runs2

Validated prediction accuracyUnavailable

Every model prediction mapped onto CAD

These fields use the 18h01 weak target for a training-set representation comparison. Image, voxel and point outputs use stored source triangles and barycentric coordinates; graph outputs are already node-aligned; UV-Net uses a distance-marked face approximation; the tabular scalar is uniform. Gray regions exceed the 10 mm mapping-support threshold.

Weak-trained prediction fields from every model displayed on common CAD nodes

All-model result comparison

Parameter count and CPU latency were measured in the same environment, but each model processes a different representation size and output domain, so latency is an operational measurement rather than a fair speed ranking. The two-step losses use a synthetic zero target and differ by output domain; only the within-model decrease checks gradient/optimizer behavior. The final column is the only loss computed from the supplied weak CAD/PLY targets.

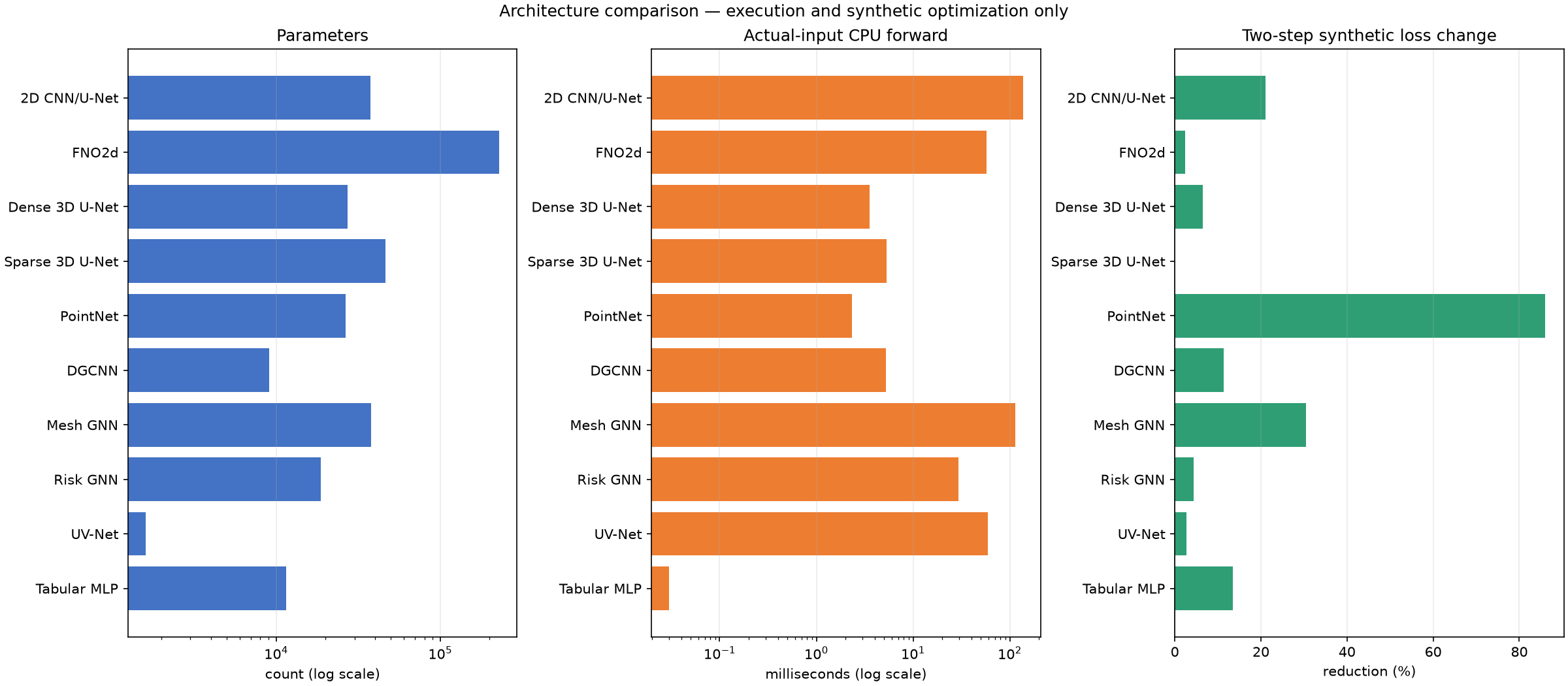

Model parameter, CPU latency and synthetic loss-reduction comparison

Model	Output domain	Process fusion	Parameters	CPU forward	Synthetic loss, step 1→2	Weak-target training result
2D CNN/U-Net	pixel	FiLM	37,505	136.397 ms	0.038875 → 0.030681 (+21.1%)	—
FNO2d	pixel/field	FiLM	229,273	57.361 ms	0.028175 → 0.027498 (+2.4%)	—
Dense 3D U-Net	voxel	FiLM	27,249	3.557 ms	0.070244 → 0.065694 (+6.5%)	—
Sparse 3D U-Net	sparse voxel	none	46,432	5.364 ms	—	—
PointNet	point	none	26,561	2.317 ms	0.0072413 → 0.0010095 (+86.1%)	—
DGCNN	point	none	9,025	5.239 ms	0.0088493 → 0.0078437 (+11.4%)	—
Mesh GNN	CAD node	edge-message	37,777	113.922 ms	0.01316 → 0.0091457 (+30.5%)	—
Risk GNN	CAD node + run	edge-message	18,694	29.426 ms	0.5644 → 0.53942 (+4.4%)	loss 0.5600; IoU 0.306; Dice 0.469
UV-Net	B-Rep face	none	1,601	59.354 ms	0.24004 → 0.23371 (+2.6%)	—
Tabular MLP	run	direct concat	11,457	0.030 ms	0.049162 → 0.042526 (+13.5%)	—

Task comparison: the risk GNN is currently the closest match to STEP + XLS → risk area + deformation because it produces CAD-node fields and consumes the process vector. Its IoU/Dice are training-set diagnostics from two unvalidated NG runs. CNN/FNO/3D U-Net already accept process conditioning but have no aligned spatial labels; PointNet, DGCNN, UV-Net and Sparse U-Net still need their XLS branch wired.

Shared XLS thermal/process branch

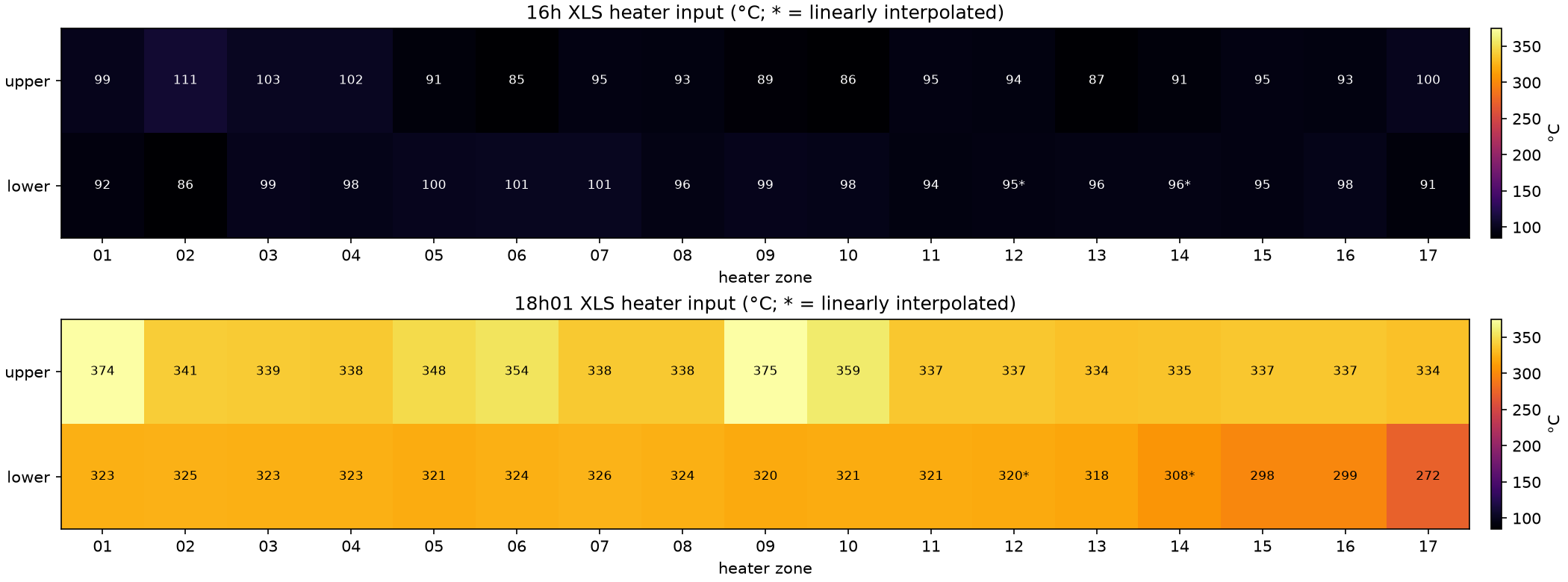

The plot shows the 34 heater values supplied to process-aware models. The complete vector has 50 XLS channels; values, observed masks and heater-imputation masks are retained separately.

Upper and lower 17-zone heater matrices for both runs

Requested MLP + encoder-feature concatenation

This is the explicit late-fusion variant to test beside the current FiLM models. The process embedding is repeated across pixels, voxels, points, graph nodes or B-Rep faces before concatenation.

Geometry

prepared geometryimage / voxel / point / graph / face

→

geometry encoderz_geo [B,S,C]

Process

XLS input50 values + observed/imputed masks

→

process MLP150→64→32

→

repeat embeddingz_proc [B,S,32]

Fusion / output

concatenate[z_geo ; z_proc]

→

fusion MLP/convC+32→C

→

spatial headsrisk + deformation

→

global pool + headdefect type

For the current two-run diagnostic, the GNN injects its process embedding into every edge message. CNN/FNO/3D U-Net currently use a single Linear-to-FiLM branch. PointNet, DGCNN, UV-Net and Sparse U-Net currently have no process branch.


2D CNN / U-Net

forward/backward passed

Route: STEP → six 17-channel orthographic images + 17 masks → 2D CNN encoder; 50 XLS + 6 CAD-summary values and 56 masks → single linear projection → FiLM at bottleneck → pixel field [view, 1, H, W]

Geometry

image input34×128×128

→

Conv2d ×234→16→16

→

MaxPool2d128→64

→

Conv2d ×216→32→32

Process

process input112

→

Linear112→64

→

splitscale 32 + bias 32

Fusion / output

FiLM bottleneck32×64×64

→

ConvTranspose2d32→16

→

concat skip16+16

→

Conv2d ×232→16→16

→

1×1 head16→1 pixel

Current code: Thermal/process values generate scale and bias for the deepest image features; skip features and the modulated bottleneck enter the decoder.
Actual checks: 1
Parameters: 37,505
CPU forward: 136.4 ms
Output shape(s): [[12, 1, 128, 128]]

Execution check only: no validated pixel risk mask exists.

image / field

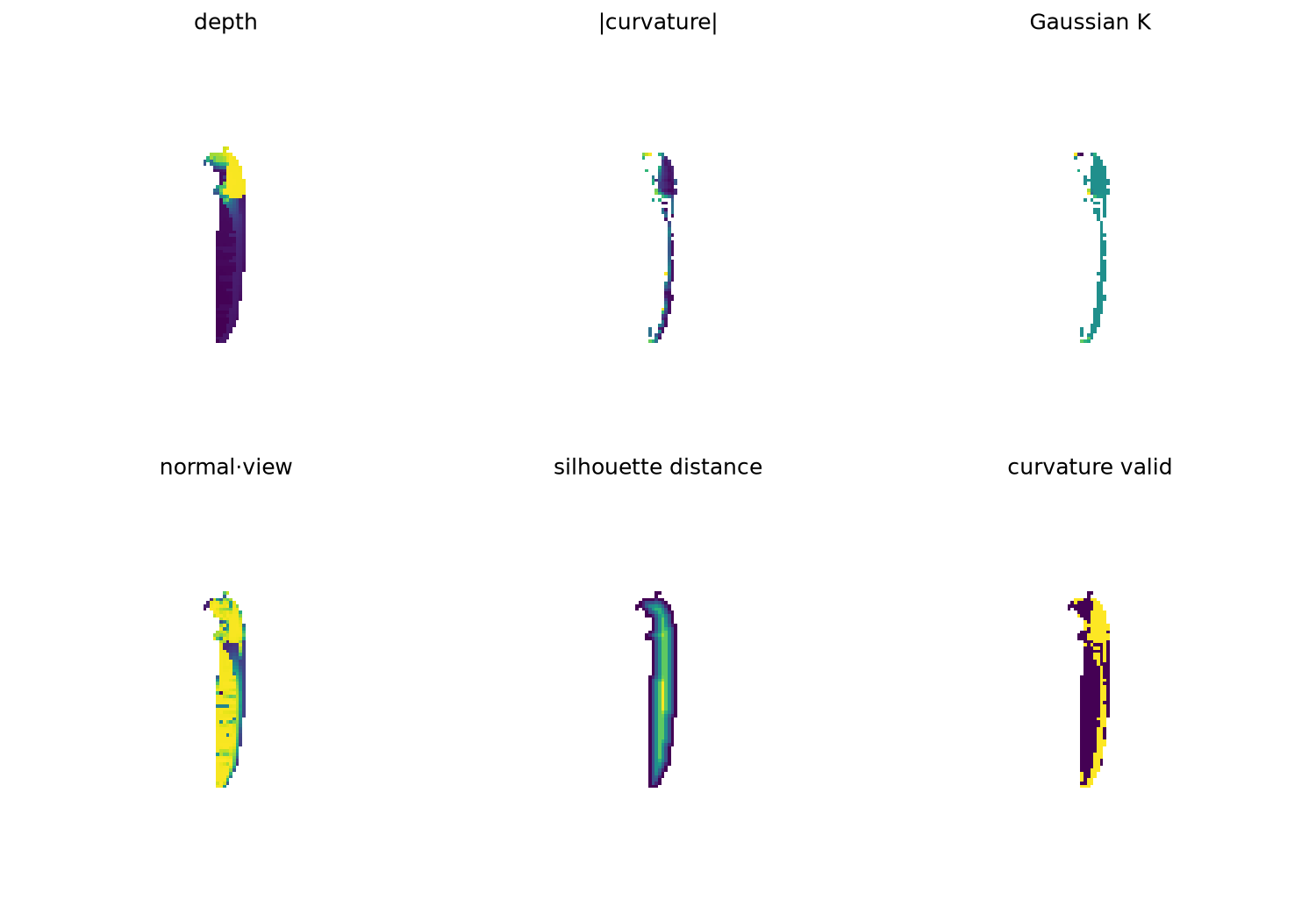

FNO2d

forward/backward passed

Route: aligned 17-channel image/field + 17 masks → 1×1 lift + Fourier blocks; 50 XLS + 6 CAD-summary values and 56 masks → single linear projection → FiLM before spectral blocks → pixel/field grid

Geometry

field input34×128×128

→

1×1 lift34→24

Process

process input112

→

Linear112→48

→

splitscale 24 + bias 24

Fusion / output

FiLM lifted field24×128×128

→

spectral + skip ×324 channels

→

1×1 head24→1 pixel

Current code: The current input is the CAD image tensor. A physical thermal operator still needs paired input and target fields over time.
Actual checks: 1
Parameters: 229,273
CPU forward: 57.4 ms
Output shape(s): [[12, 1, 128, 128]]

Architecture execution only; this is not a learned temperature field.

voxel

Dense 3D U-Net

forward/backward passed

Route: STEP → 12-channel dense surface-voxel tensor + 12 masks → 3D convolution encoder; 50 XLS + 6 CAD-summary values and 56 masks → single linear projection → FiLM at 3D bottleneck → voxel field [run, 1, X, Y, Z]

Geometry

voxel input24×32×4×16

→

Conv3d ×224→8→8

→

MaxPool3d16×2×8

→

Conv3d ×28→16→16

Process

process input112

→

Linear112→32

→

splitscale 16 + bias 16

Fusion / output

FiLM bottleneck16×16×2×8

→

ConvTranspose3d16→8

→

concat skip8+8

→

Conv3d ×216→8→8

→

1×1 head8→1 voxel

Current code: The process branch modulates the deepest 3D features before the skip-connected decoder.
Actual checks: 1
Parameters: 27,249
CPU forward: 3.6 ms
Output shape(s): [[2, 1, 32, 4, 16]]

The voxel input represents sampled surfaces, not filled material volume.

sparse voxel

Sparse 3D U-Net

forward/backward passed

Route: STEP → occupied voxel coordinates + features → Minkowski sparse encoder; XLS branch proposed → append/broadcast process embedding at sparse bottleneck → occupied-voxel field

Geometry

sparse input403 coords, 24 feat

→

MinkowskiConv24→16

→

stride-2 down16→32

→

mid Conv32→32

Process

XLS branchnot wired

Fusion / output

transpose Conv32→16

→

concat sparse skip16+16

→

sparse head32→1 cell

Current code: Geometry-only sparse implementation. Process fusion is not yet wired because MinkowskiEngine is unavailable on this machine.
Actual checks: 1
Parameters: 46,432
CPU forward: 5.4 ms
Output shape(s): [[403, 1]]

point

PointNet segmentation

forward/backward passed

Route: STEP → 8,192 surface points + normals/features → shared point MLP + global max pool; XLS MLP proposed → append global process embedding to every point → point risk/deformation field

Geometry

point input8,192×C

→

shared Conv1dC→64→128

→

global max128

→

repeat + concat128+128

Process

XLS MLPproposed, not wired

Fusion / output

point head256→64→1

→

outputone scalar / point

Current code: The present PointNet smoke is geometry-only. The diagram shows the intended process-fusion extension.
Actual checks: 3
Parameters: 25,921, 26,561
CPU forward: 1.7–2.3 ms
Output shape(s): [[1, 8192, 1], [1, 8192, 1], [1, 8192, 1]]

CAD points are valid pre-process input; scan points belong to the post-process inspection task.

point

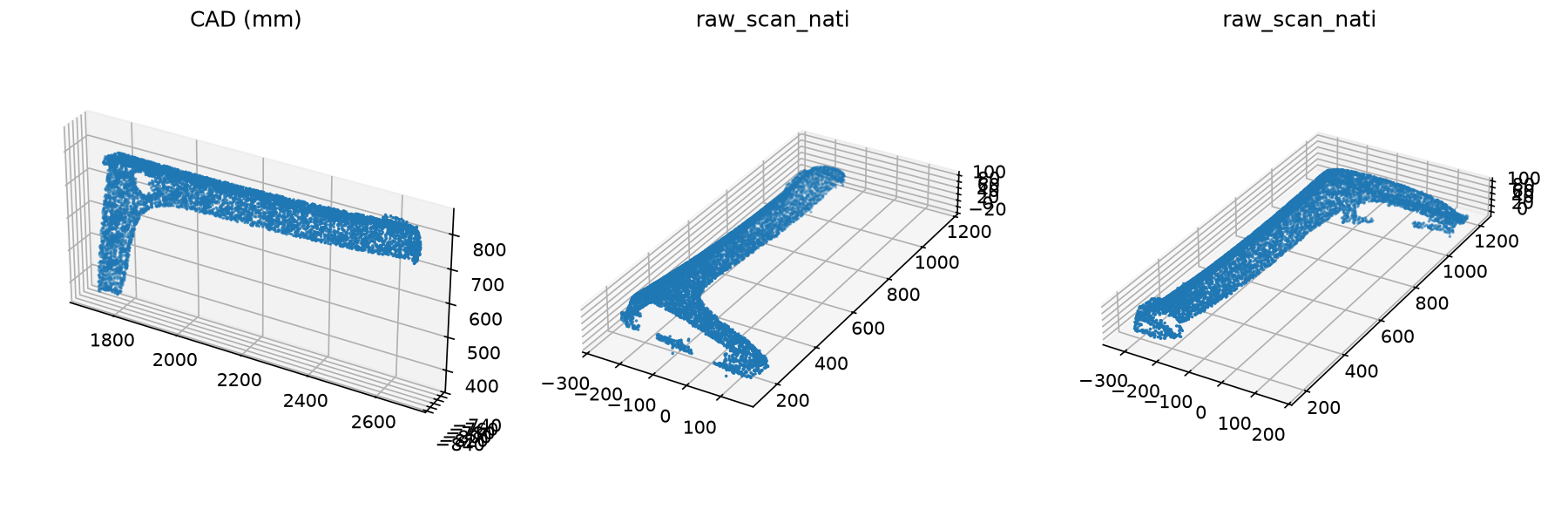

DGCNN segmentation

forward/backward passed

Route: points → dynamic feature-space kNN → two EdgeConv stages + global pool; XLS MLP proposed → append process embedding to local/global point features → point field

Geometry

point input512×C

→

dynamic kNNk=12

→

Edge MLP 12C→32→32

→

new kNN + Edge MLP 264→32→32

Process

XLS MLPproposed, not wired

Fusion / output

local + local + global32+32+32

→

point head96→32→1

Current code: The present DGCNN smoke is geometry-only and capped at 512 points for CPU memory. Process fusion remains a proposed extension.
Actual checks: 3
Parameters: 8,385, 9,025
CPU forward: 2.1–5.2 ms
Output shape(s): [[1, 512, 1], [1, 512, 1], [1, 512, 1]]

graph

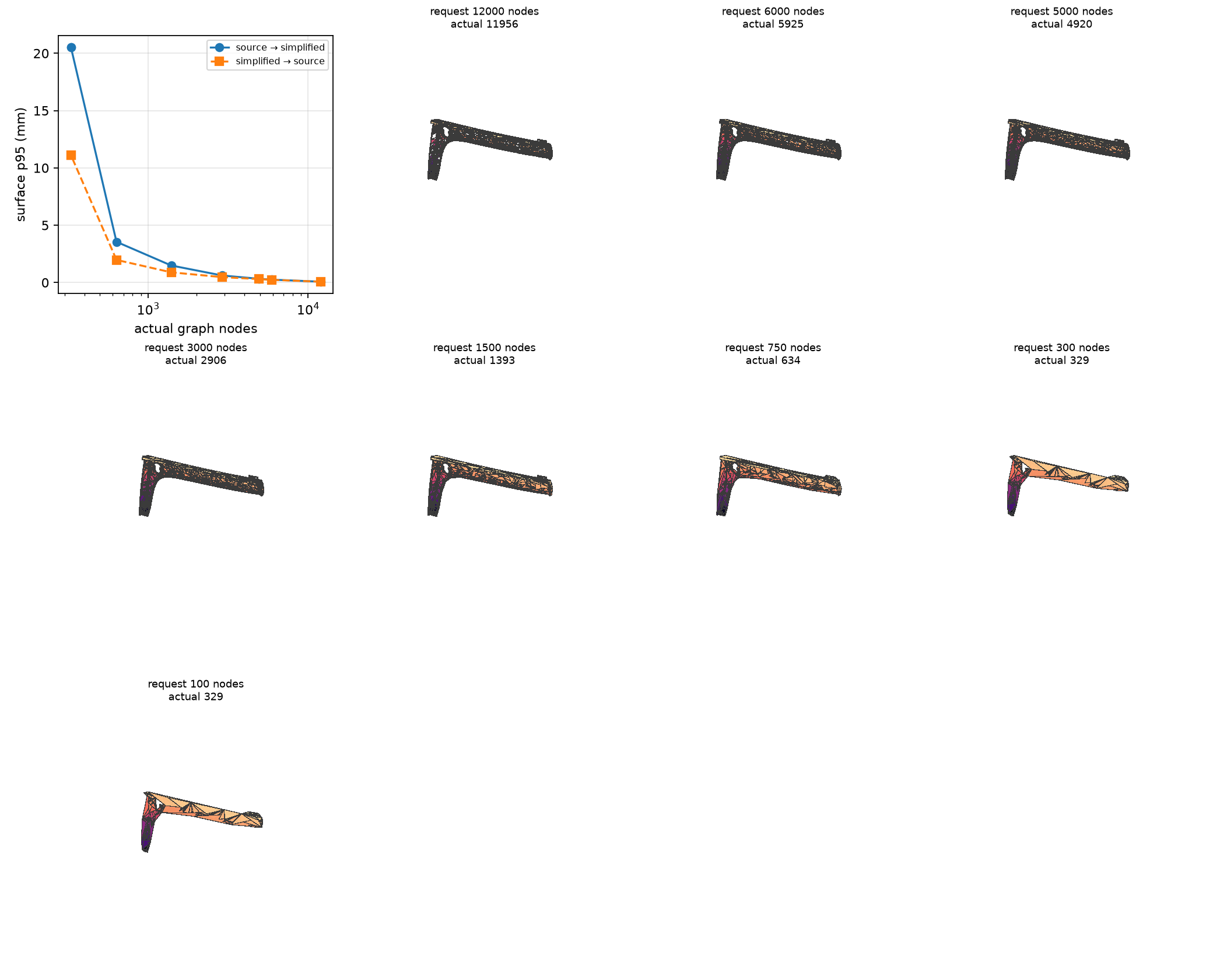

MeshGraphNet-style GNN

forward/backward passed

Route: STEP → nodes, mesh edges, curvature/boundary features → node/edge message passing; 112-value process/CAD-summary vector → global encoder → global embedding appended to every edge message → CAD-node field

Geometry

node inputN×32

→

node encoder32→48

→

edge inputE×8

Process

global input112

→

Linear + GELU112→48

Fusion / output

edge message ×348+48+8+48→48→48

→

sum at destinationN×48

→

GRU update ×396→48

→

node head48→1

Current code: This is the most direct variable-node CAD representation. The same weights executed on all seven graph resolutions.
Actual checks: 7
Parameters: 37,777
CPU forward: 4.6–113.9 ms
Output shape(s): [[658, 1], [23912, 1], [2786, 1], [658, 1], [5812, 1], [11850, 1], [1268, 1]]

trained diagnostic

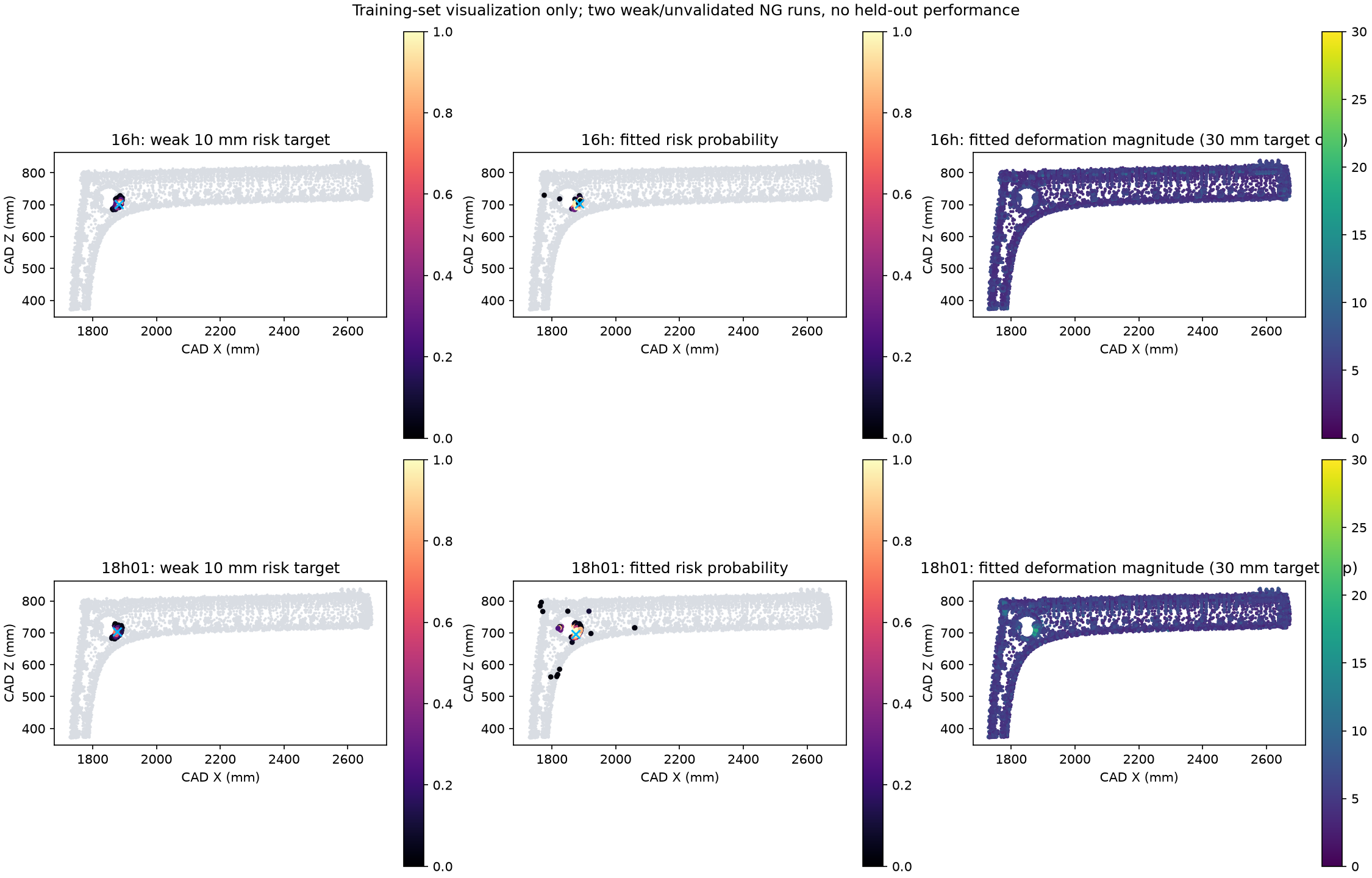

Physics-constrained risk GNN

forward/backward passed

Route: 11,956-node STEP graph → message passing; 50 XLS + observed/imputed masks → global encoder → process embedding in every edge message → node risk + signed/magnitude deformation; run defect type

Geometry

node input2×11,956×32

→

node encoder32→32

→

edge input2×72,176×8

Process

weak-train input2×150

→

Linear + GELU150→32

→

smoke alternative2×112→32

Fusion / output

edge message ×232+32+8+32→32→32

→

GRU update ×264→32

→

raw head32→(3 + classes)

→

node headsrisk, signed, magnitude

→

mean poolrun defect type

Current code: Four output heads are active. Magnitude ≥ |signed deformation| is enforced by construction; risk/deformation graph smoothness are soft losses.
Actual checks: 1
Parameters: 18,694
CPU forward: 29.4 ms
Output shape(s): [{"risk_logit": [23912], "signed_normal_deformation": [23912], "deformation_magnitude": [23912], "defect_type_logits": [2, 3]}]

Weak two-run training diagnostic: loss 1.962 → 0.560, IoU 0.306, Dice 0.469. Type learning is unavailable because both labels are 찍힘.

B-Rep

UV-Net-style face model

forward/backward passed

Route: STEP faces → trimmed 8×8 UV grids + face adjacency → per-face 2D CNN + face graph messages; XLS MLP proposed → append run embedding before face-message head → face risk/field

Geometry

face UV grids6,564×12×8×8

→

Conv2d ×212→8→8

→

mean UV pool6,564×8

→

face edges36,090

Process

XLS MLPproposed, not wired

Fusion / output

face message8+8→8

→

sum at destination6,564×8

→

face head8→1

Current code: The current UV model is geometry-only. Process fusion and a face-to-surface decoder remain proposed.
Actual checks: 1
Parameters: 1,601
CPU forward: 59.4 ms
Output shape(s): [[6564, 1]]

tabular

Tabular MLP surrogate

forward/backward passed

Route: STEP summary: bbox, area, node/triangle counts → feature scaling + mask append; 50 XLS channels + validity masks → concatenate all tabular inputs → one run-level value

Geometry

CAD summary6 values + masks

Process

XLS process50 values + masks

→

concatenate112 total

Fusion / output

Linear + GELU112→64

→

Linear + GELU64→64

→

run head64→1

Current code: This baseline directly concatenates process and CAD summary features before the MLP; it cannot localize a risk area.
Actual checks: 1
Parameters: 11,457
CPU forward: 0.0 ms
Output shape(s): [[2, 1]]
